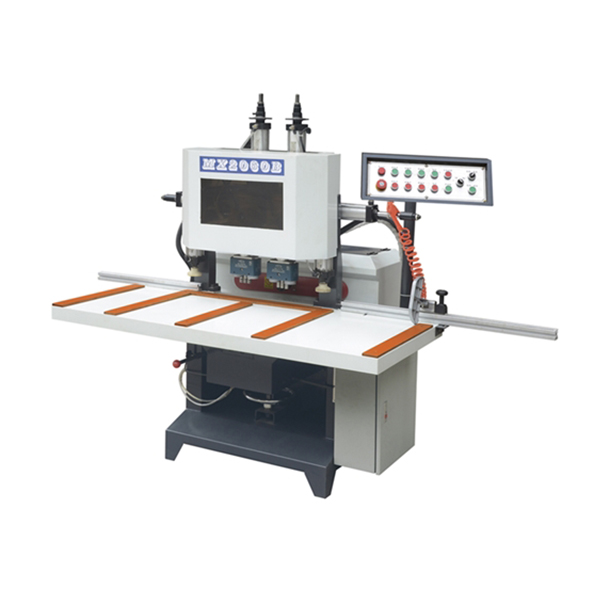

Double Head Door Lock Hole Sloting Machine
Application
The machine is suitable for processing wooden doors, door frames, window frames, window sills, door locks, door lock steps, door lock hinges, one-time milling, complete, convenient, accurate control of door locks, gutters, hinge processing dimensions.
Features
1. With high quality electrical appliances, the performance is stable and reliable.
2. The ruler is convenient and accurate to control the size of the door lock, the groove and the hinge.
3. The body is made of high quality steel plate and is processed by high temperature processing.
4. Barometer, with high accuracy and long service life.
5. The pressure cylinder is specially processed for a longer service life.
6. The worktable lift hand wheel is easy to use and easy to operate.
Parameters
| Model | MXZ2060B |
| Max length of milling slots | 220mm |
| Max depth of milling groove | 120mm |
| Max width of milling groove | 30mm |
| Adjust height of the work | 50mm |
| Slot milling spindle speed | 100r/min |
| Motor power | 4.6kw |
| Air pressure | 0.45-0.6Mpa |
Model Details
Series model
-Double Heads Door Lock Hole Mortising Machine
