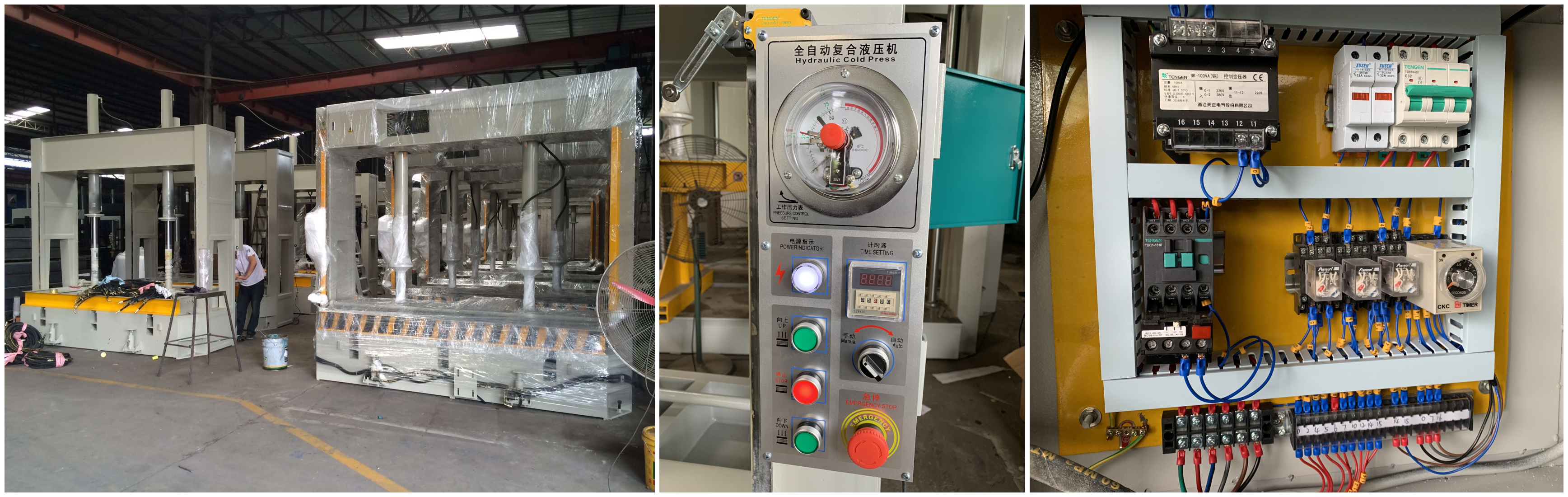

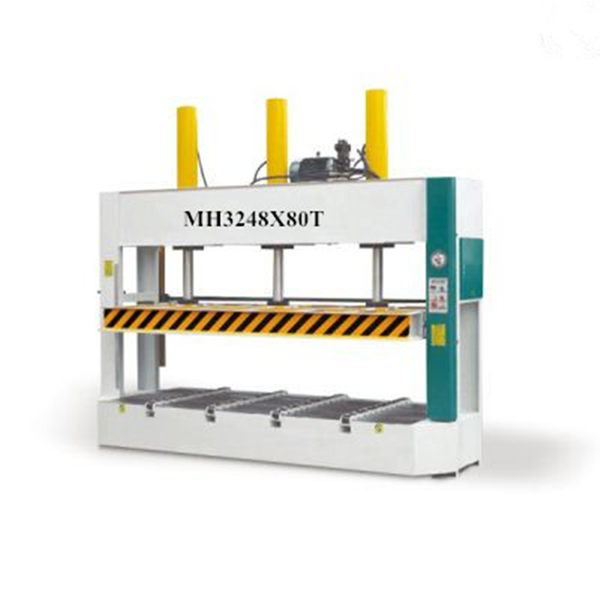

Hydraulic cold press MH3248x80T
Woodworking hydraulic cold press with automtic feeding
Application
1. Widely used to glue furniture plates, building partitions, doors, (that is, within the frame and glue thin plywood) and in a variety of wood-based panel (such as plywood, block board, MDF, particleboard)
2.surface pressure Posts a variety of decorative material (such as decorative paper, decorative fabric, fireproof melamine plate,metal foil, thin man-made and natural wood, natural veneer parquet)
3.veneer drying leveling, leveling color decorative wood chips .
amorphous.
Features

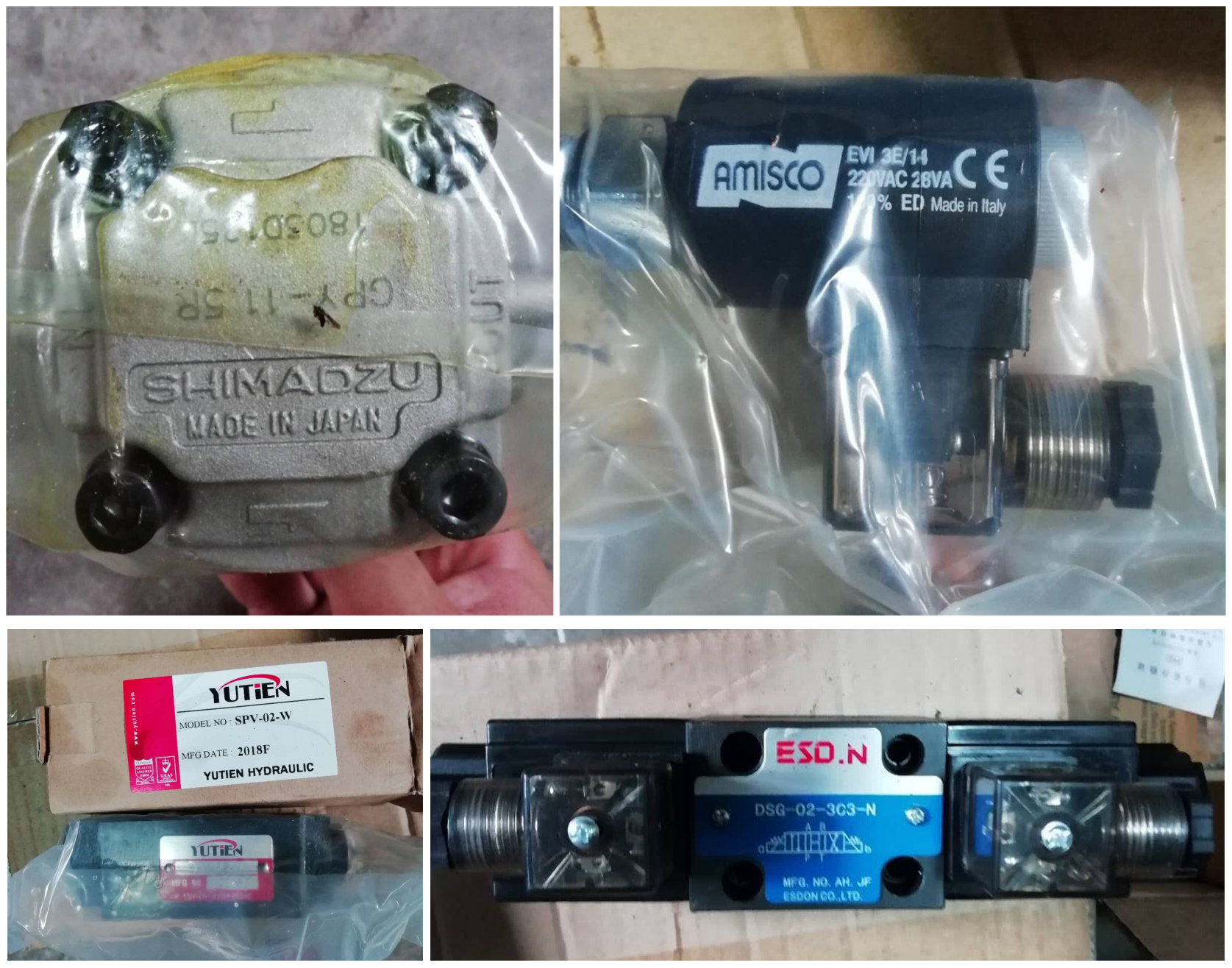

A good press which mainly decided by all kinds of valves, oil pump, oil cylinder and steel structure. We adopt high quality and power brand accessories, as to the main components and parts as well as all the hydraulic components:
–oil pump from Japan SHIMADZU
–pressure retaining valve from Taiwan YUTIEN
–pressure relief valve from Italy AMISCO …….

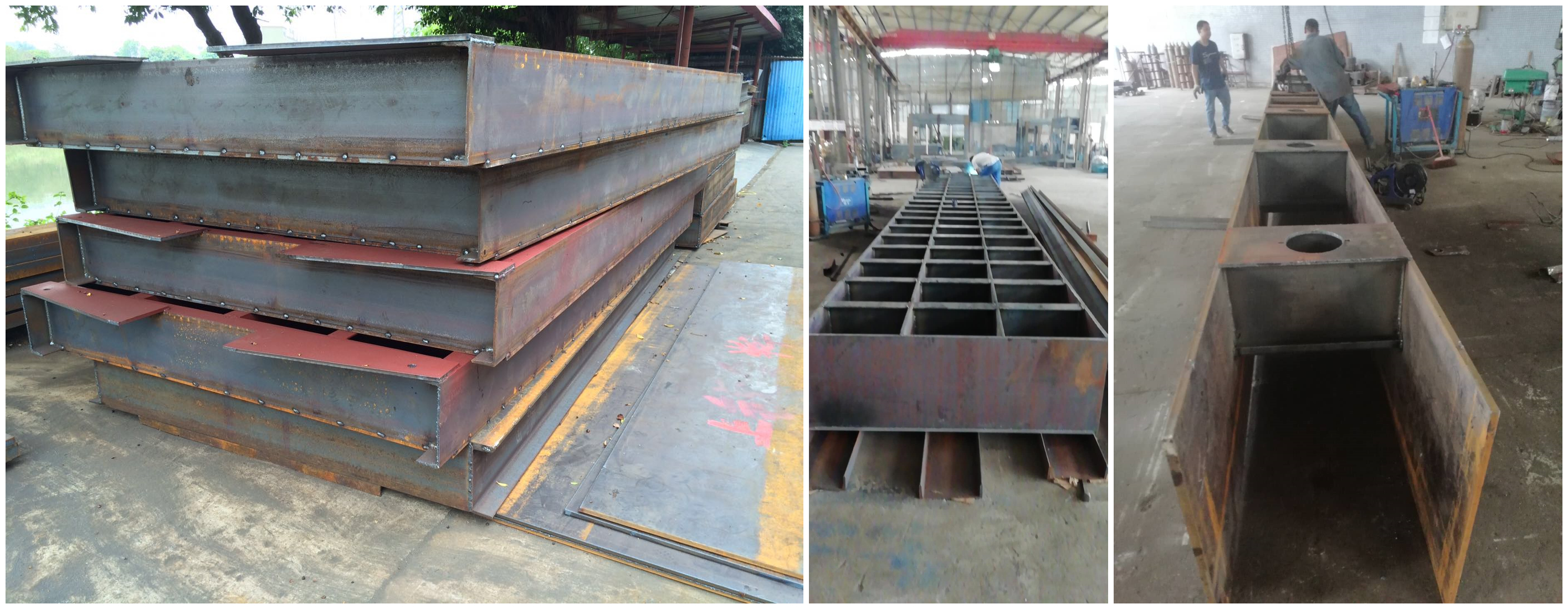

Model Frame

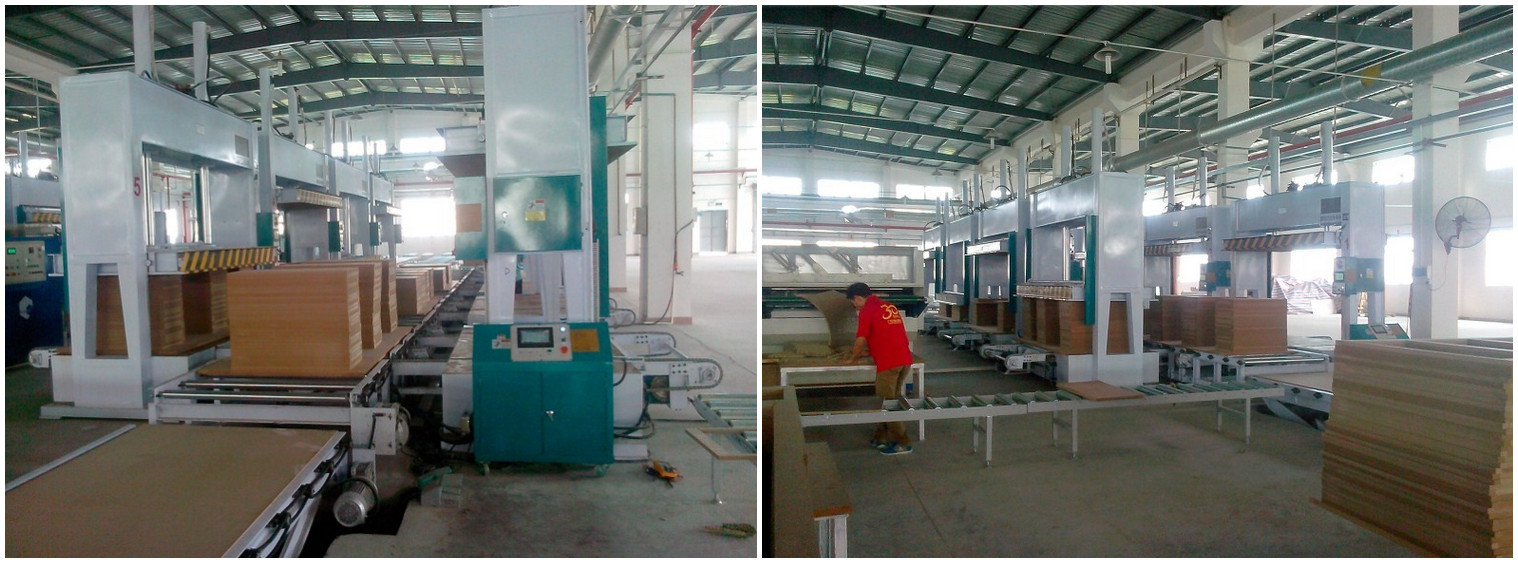

Customer Case
Model Data
| Spec /model No | MH3248-50T | MH3248-60T | MH3248-80T |
| Press platen dimensions | 2500*1250 mm | 2500*1250 mm | 3000*1250 mm |
| Max. total thrust | 50T | 60T | 60T |
| Pressure of hydraulic system | 210kg/cm 2 | 210kg/cm 2 | 210kg/cm 2 |
| Max.platen opening | 1000mm | 1000mm | 1000mm |
| Oil cylinders size | Diameter 125mm | Diameter 125mm | Diameter 125mm |
| Piston rod 90mm*2 | Piston rod 90mm*2 | Piston rod 90mm*3 | |
| Oil cylinders arrange | Straight Line | Straight Line | Straight Line |
| Oil cylinders power | 5.5kw | 5.5kw | 5.5kw |
| Overall dimension | 2900*1250*3150 mm | 2900*1250*3150 mm | 2900*1250*3150 mm |
| Weight | 2000 kg | 2000 kg | 2000 kg |

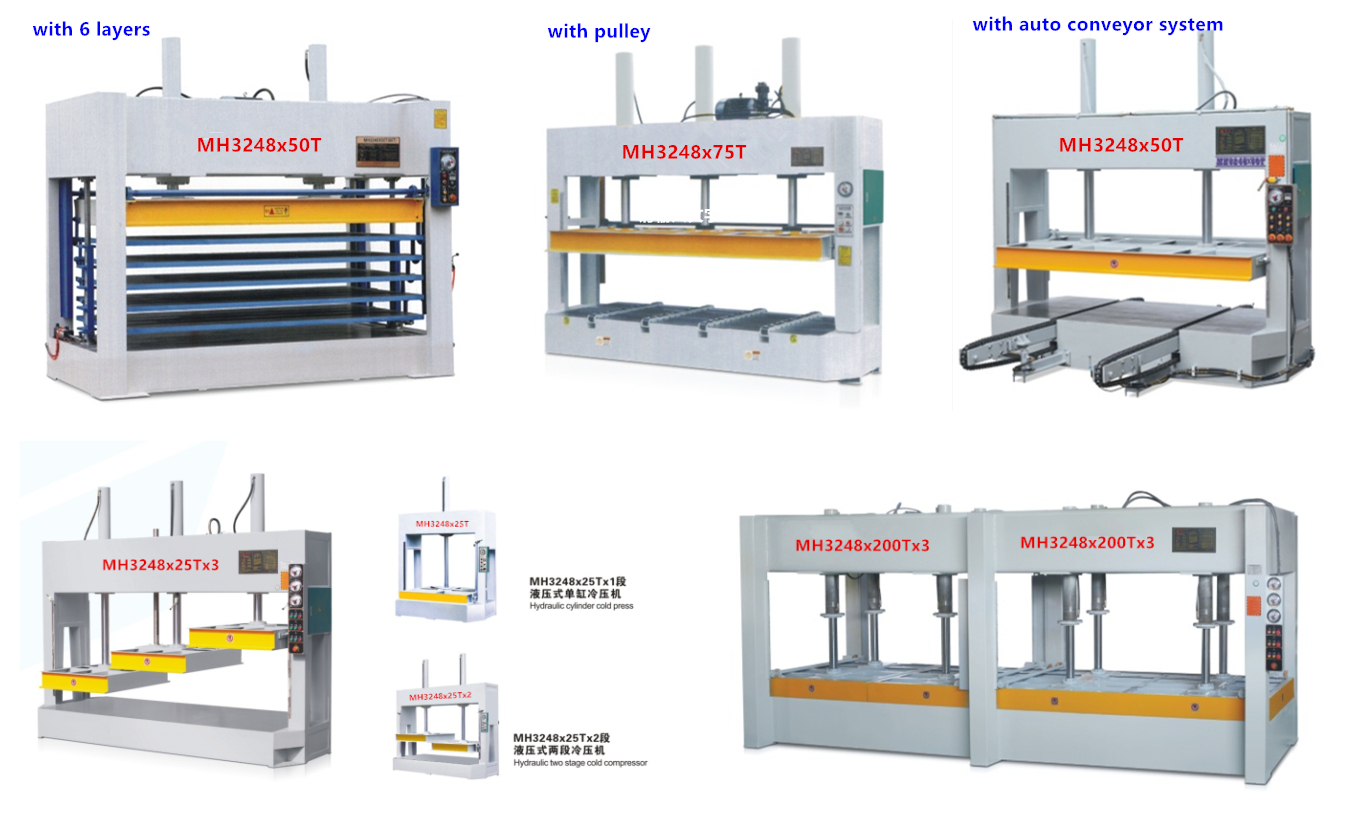

Series Model
