Multi layers Hot Press Board Assembling Machine

Woodworking Multi-layers Hot Press Board Assembling Machine

Application

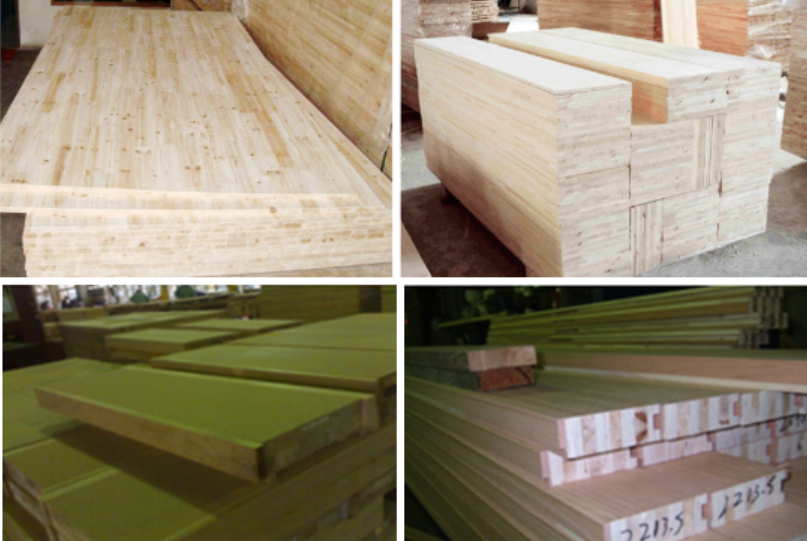

This hot press machine/block board production machine is used for block board jointing and forming, apply to laminated wood, particle board, door panel jointing, and solid wood, door pocket, door line banding, or other wooden block gluing etc.

Features

1. We can make hot press machine for making plywood board , blockboard , particle board , MDF , Chipboard for making door .

2. Hot platens sizes can be customized , 1370×2700,1100×1830 , 1610×1710 , and other sizes available .

 Layers can be 5 layers , 8 layers , 10 layers , 12 layers , 15 layers , 18 layers , 20 layers  , 25layers , 30 layers ,

3. The hot platens is made of C45 / DIN 17200 steel, high rigidity , drilled with large duty deep hole drill . oil/steam double inlet and double outlet .

4. Its frame is knock down model , fixed with screw and then weld at customer factory site , then it will be convenient to ship by containers .

5. It can be heated by both steam water and thermo oil .

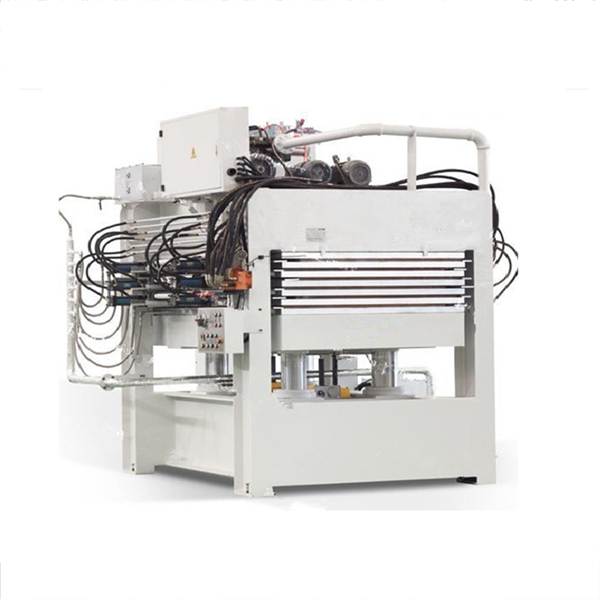

Hot Press Frame

Quality Control

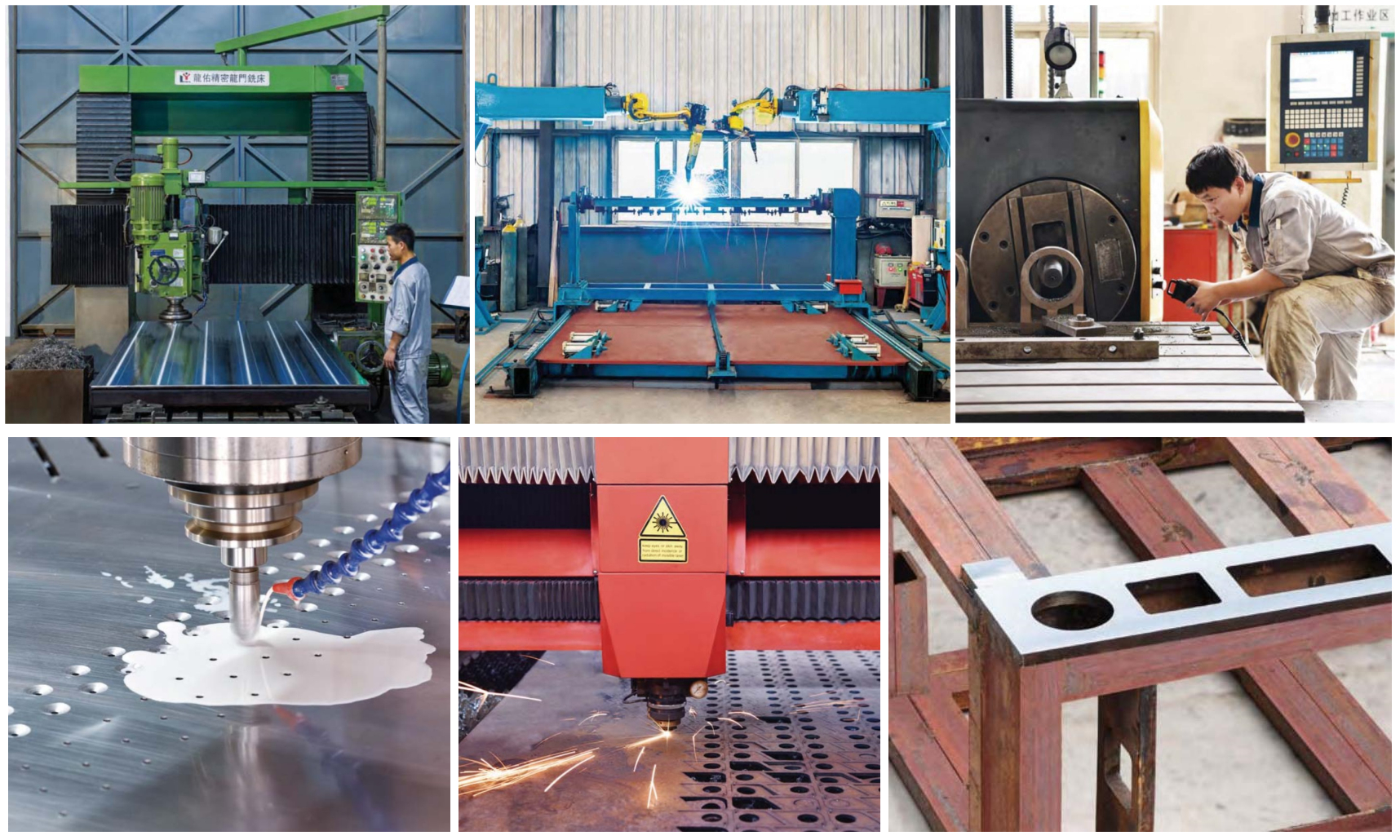

1. To make the block board production line, We have the most advanced processing equipment , CNC Flame Cutting Machine and Vibration Stress Relief .

2. Each pc of steel plates must be cutted by the CNC Flame Cutting Machine , with the workpiece drawing buitin the softwares , it is high efficiency , and can mostly keep the precision of the workpiece

3. Before processed by lathing machine ,each welded workpiece must be treated by the Vibration Stress Relief , to relief the stress in the workpiece steel , then the workpiece will never  deform . and the hot press machine will always be same high precision even after working for many years.

4. For each workpiece of the block board production line , all the sides surfaces must be processed by lathe machines strictly according to the drawing .

5. Each lathed workpiece must be inspected by Special Inspector strictly accroding to the drawing .

6. Each part must be assembled strictly as the the Drawing Requirements.

7. Before delivery , each hot press machine must be test running  in our warehouse and inspected by the inspector .

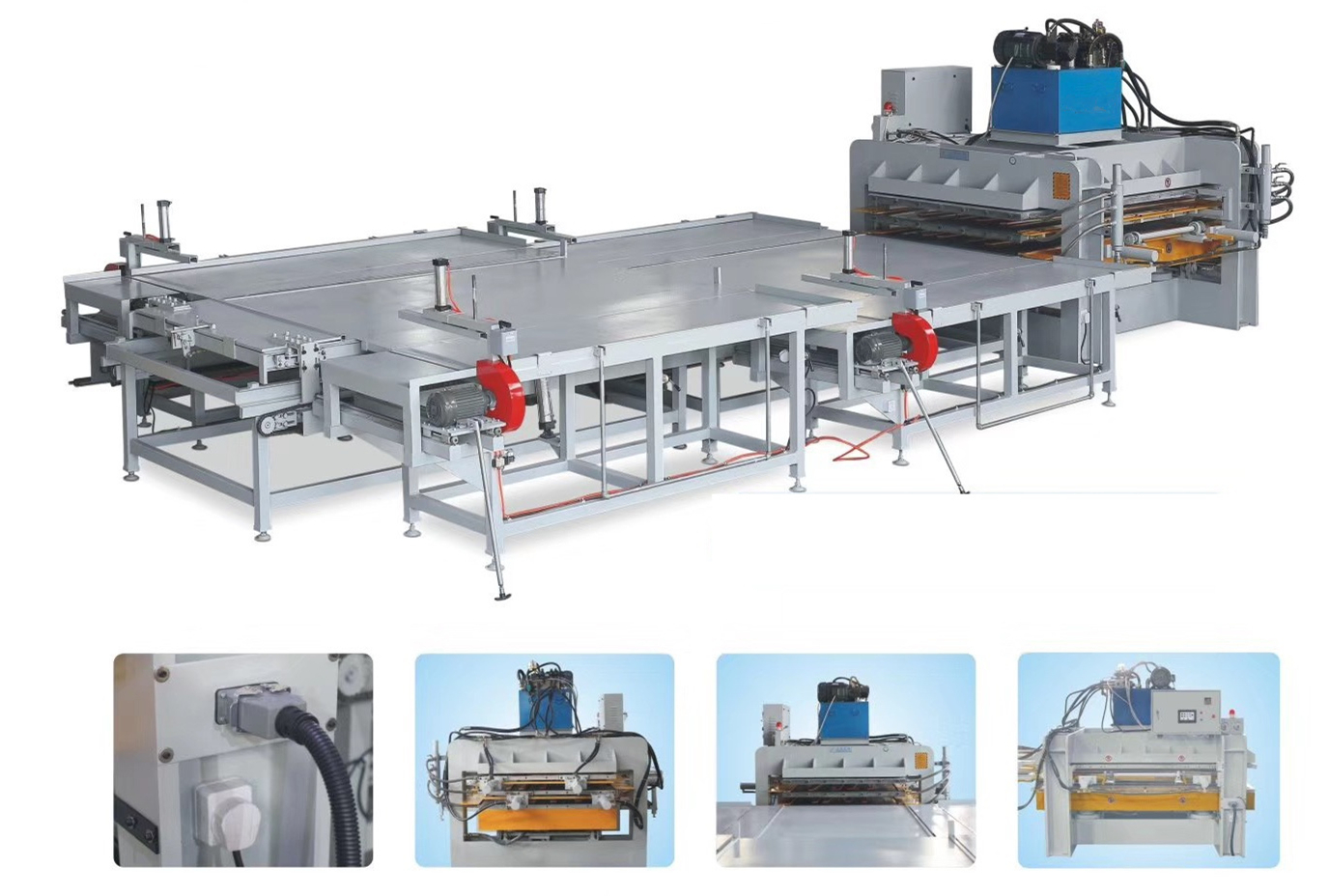

 Production line with auto feeding

 Series Models

 Operation Video
