Newly Plank Frame Saw

Short Description:

Application 1. Suitable for cutting wood and heavy bamboo, used for flooring , shutter, guitar, wall panel and so on. 2.Max number of sawing motion can reach to 480 times per minute! 3. Saw blade loss : 0.9-1.2-1.4, highly save the cutting cost of the workpiece, it’s best for expensive wood processing and can highly reduce the material wastage.  4. Special cutting dust cleaning system, clean wood dust on conveyor automatically and continually  insure cutting precision Parameter O...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    1. Suitable for cutting wood and heavy bamboo, used for flooring , shutter, guitar, wall panel and so on.

    2.Max number of sawing motion can reach to 480 times per minute!

    3. Saw blade loss : 0.9-1.2-1.4, highly save the cutting cost of the workpiece, it’s best for expensive wood processing and can highly reduce the material wastage.

    4. Special cutting dust cleaning system, clean wood dust on conveyor automatically and continually
     insure cutting precision

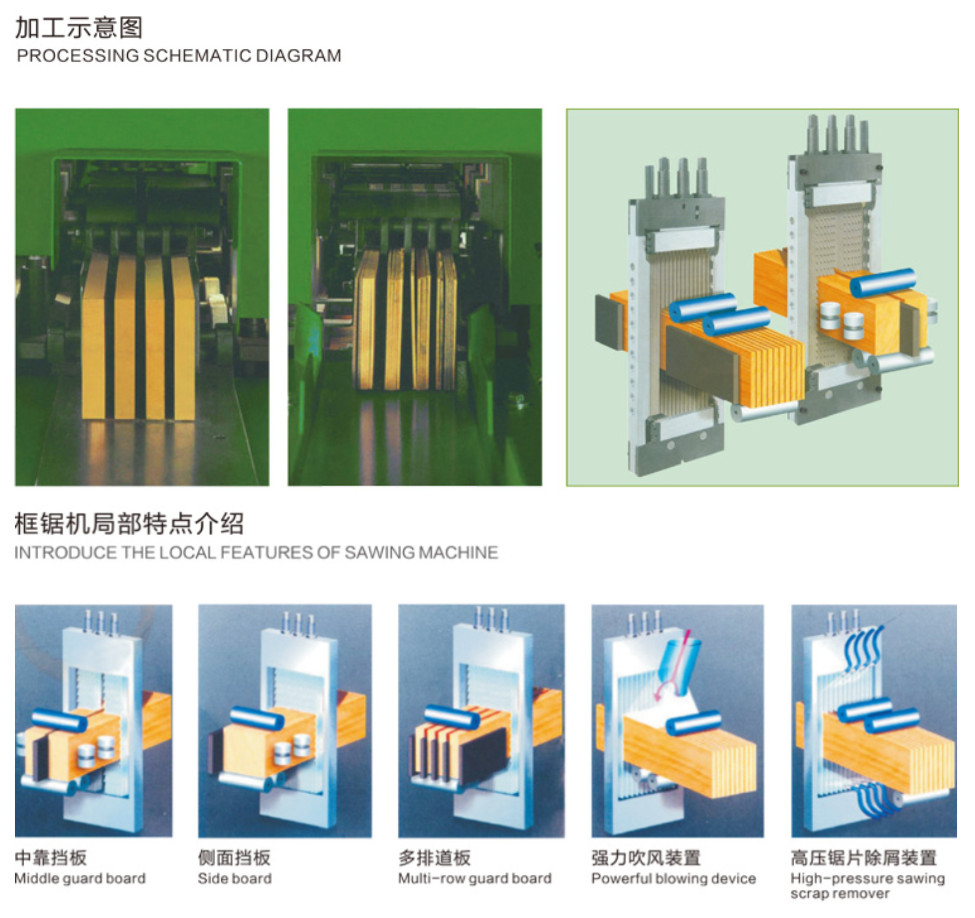

    frame saw structure

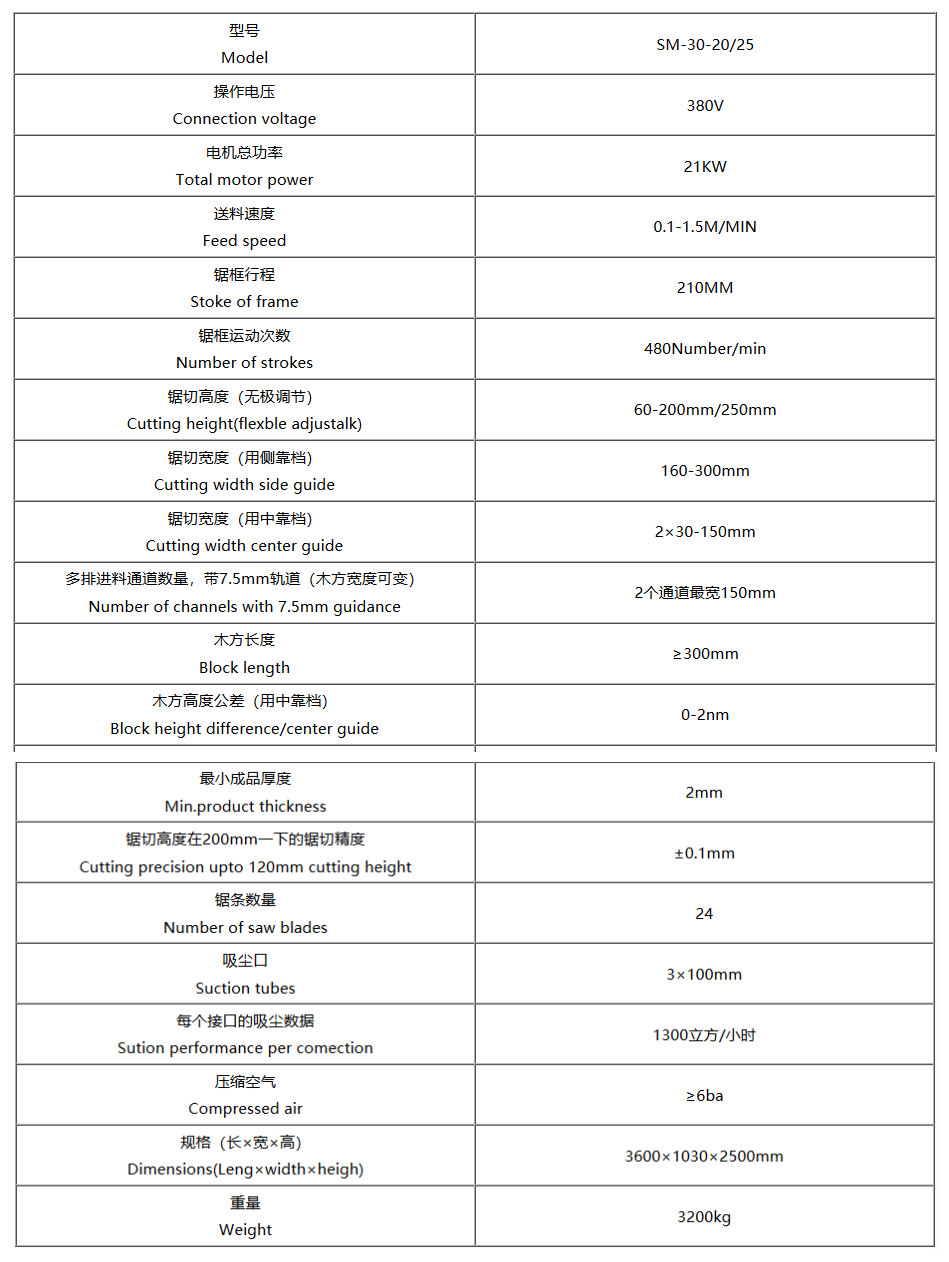

    Parameter

    SM-30-20 25 parameter

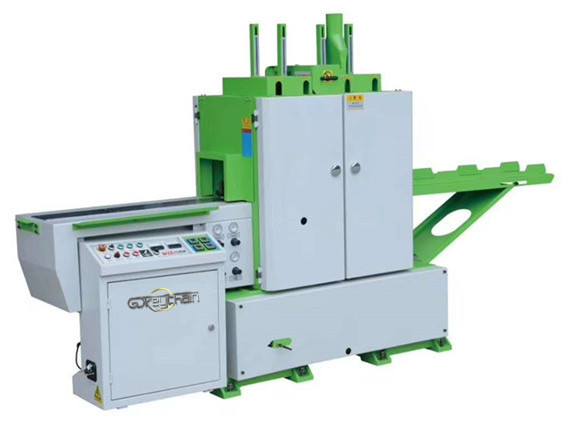

    Old Appearance

    gdkeychain log frame saw 600-600 _副本
