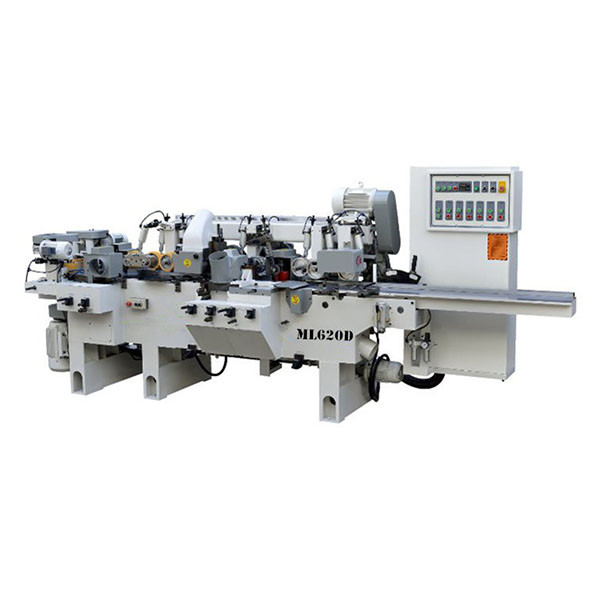

Four side Planing & Sawing machine
Application
This four side planer with sawing function , which mainly for square wood processing , a professional solution for big
production volume of wooden panels, sauna board, bed, sofa bottom seat board , wood board production line,
achieving higher efficiency, and lower labor cost
Model Feature
1. Four side planer saw machine structure is reasonable, the operation is simple and convenient.
2. Saw shaft frequency independent operation, transportation, according to wood hardness choose reasonable transmission speed.
3. Hard chromium plating on the working table, smooth and wear resistance.
4. Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth.
5. Saw blade adopts automatic jet cooling device with automatic jet, and the usage rate of saw blade is promoted.
6. High efficiency, energy saving, material saving, one machine with multiple purposes.

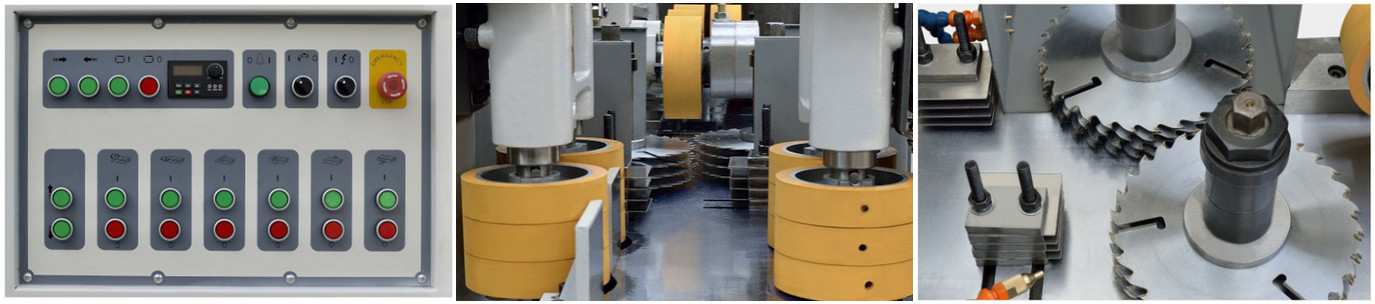

Model details
Parameter
| Technical Data | ML616D | ML620D |
| Max working width | 20-160mm | 20-200mm |
| Max working thickness | 10-120mm | 10-120mm |
| Min. working length (discontinuous / continuous) | 650/480 | 650/480 |
| Saw spindle Diameter: | Φ40 | Φ40 |
| Saw sprindle sped | 4500r/min | 4500r/min |
| The planer shaft diameter | Ø40 | Ø40 |
| Cutter shaft speed | 6000r/min | 6000r/min |
| Feed rate | 5-28m/min | 5-28m/min |
| First knife | Ø125mm | Ø125mm |
| Right\left vertical cutter: | Ø110-Ø180mm | Ø110-Ø180mm |
| Top cutter: | Ø110-Ø180mm | Ø110-Ø180mm |
| Left and right blade diameter: | Ø180-Ø250mm | Ø180-Ø250mm |
| First knife | 4kw\5.5HP | 5.5kw\7.5HP |
| Left and right vertical knife: | 2×4kw\5.5HP | 2×5.5kw\7.5HP |
| left and right saw spindle motor | 2×7.5kw\11HP | 2×11kw\15HP |
| Feeding motor: | 3kw\4HP | 4kw\5.5HP |
| Rear auxiliary feeding motor: | 2×0.37kw\1HP | 2×0.37kw\1HP |
| Beam lifting motor: | 0.75kw\1HP | 0.75kw\1HP |
| Total motor power: | 36.99kw | 51.49kw |
| Air pressure: | 0.3-0.6MPa | 0.3-0.6MPa |
| Dust collection diameter: | 2×Ø150+4×Ø120mm | 2×Ø150+4×Ø120mm |
| Dimensions: | 4300×1550×1720mm | 4000×1550×1720mm |
| Weight: | 3000kg | 2600kg |
