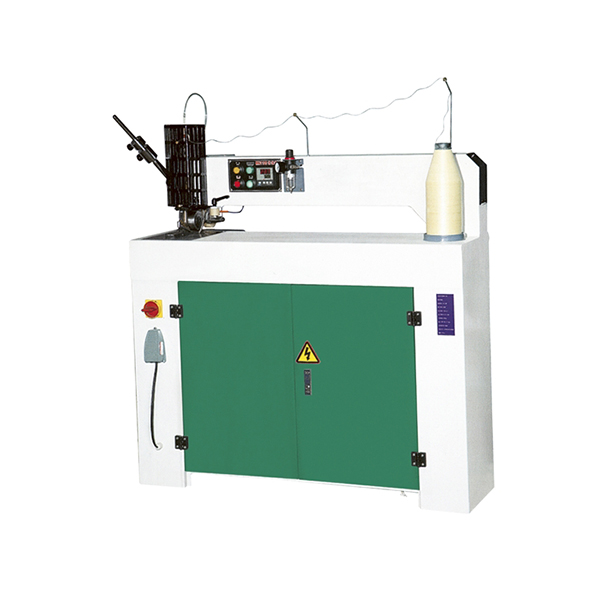

Veneer Splicer Machine MH1109

Short Description:

Application –This veneer splicer machine bonds edges of veneer strips together to form larger sheets through using glue thread. It uses switch to regulate heat, pressure of roller, and conveyor speed according to thickness of veneer sheets to be processed. –Bonding line can automatically smear by “Z” sub type to ensure the bonding and sealing be solid. –Even use curving veneer, can also effectively prevent wear and disconnect. Parameters Entrance width 920mm...


  • Voltage: AC380V/50HZ/3Phase
  • Min.Order Quantity: 1Piece/Pieces
  • Trading Terms: FOB, CIF
  • Port: Foshan
  • Payment Terms: T/T,L/C
  • Product Detail

    Product Tags

    Application

    –This veneer splicer machine bonds edges of veneer strips together to form larger sheets through using glue thread. It uses switch to regulate heat, pressure of roller, and conveyor speed according to thickness of veneer sheets to be processed.
    –Bonding line can automatically smear by “Z” sub type to ensure the bonding and sealing be solid.
    –Even use curving veneer, can also effectively prevent wear and disconnect.
    Woodworking Veneer Splicer Machine Mh1109 Veneer Jointer Stitching Machine for Plywood Production
    Parameters

    Entrance width 920mm
    Veneer thickness 0.3-2mm
    Feeding motor 0.18kw
    Heating motor 0.32kw
    Working speed 15mm/min
    Power supply 380V 520Hz 3ph
    Installation power 0.5kw
    Dimension 1280x580x1470mm

    Model details
    Woodworking Veneer Splicer Machine Mh1109 Veneer Jointer Stitching Machine for Plywood Production
    Woodworking Veneer Splicer Machine Mh1109 Veneer Jointer Stitching Machine for Plywood Production
    Woodworking Veneer Splicer Machine Mh1109 Veneer Jointer Stitching Machine for Plywood Production

    Operation Video
