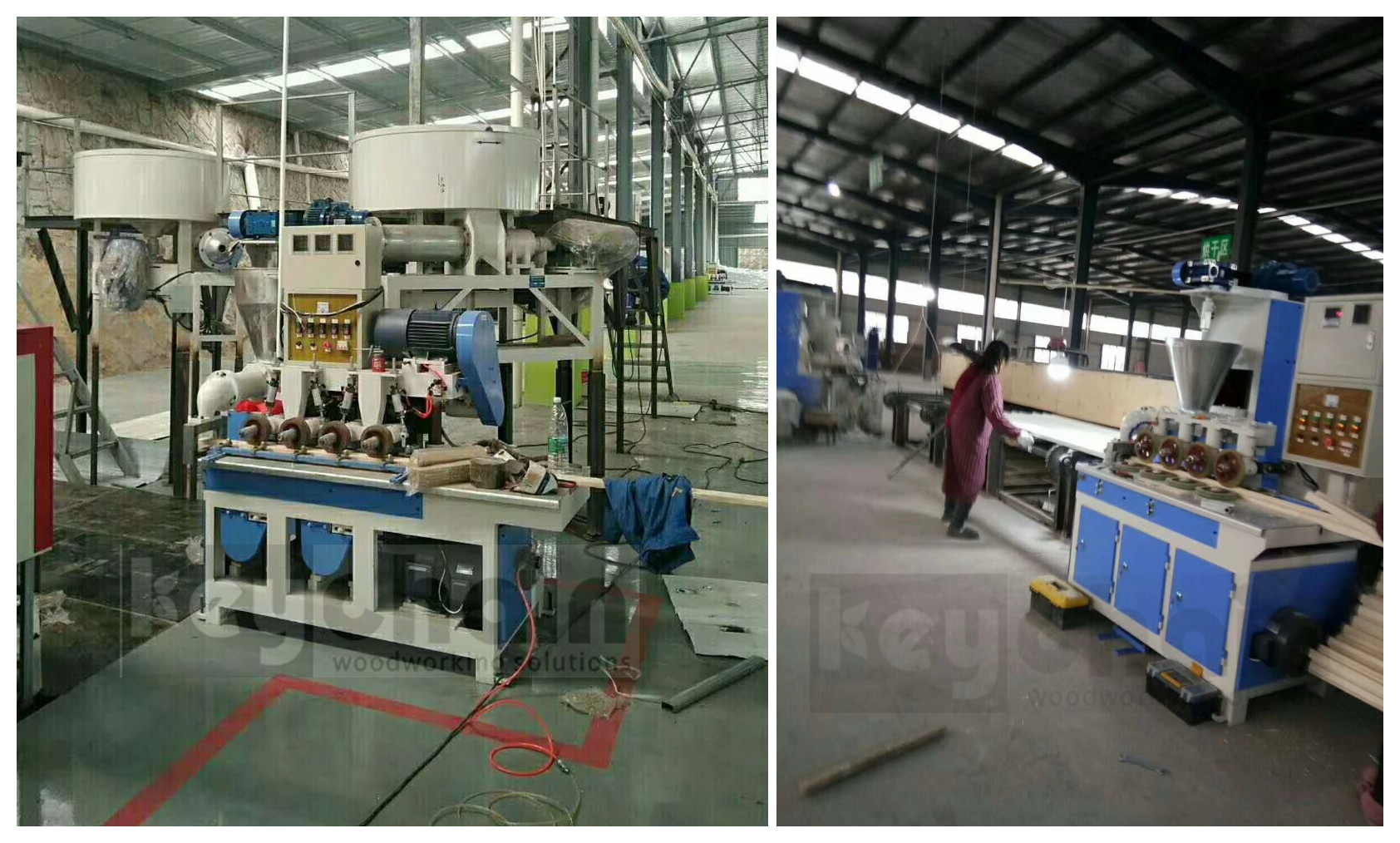

Wood Moulding Gesso Coat Extrusion Machine (extruder)
Application
For production line of wooden moulding, boards, handrail and door & window frame etc.:

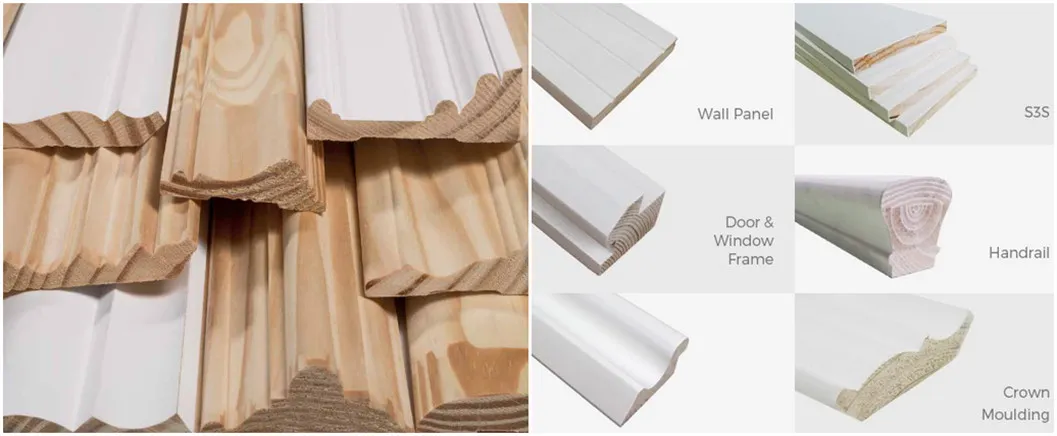

-–Mouldings
( crowns, beds, coves, casings, brick mould, chair rails, base mouldings, base caps, picture frames mouldings, floor line )
—Door jambs and components
(exterior door jambs, flat jambs, split jambs, door frames, stiles , rails, door cover line)
—Stair window and furniture component
(hand rails, risers, treads, baluster, posts, tringers, window extensions, rabbeted stools, window scantlings, flat stools)
Gesso extruder machine is designed for the coating in a continous cycle paint, bolus, plaster or gesso on mouldings of any shape trips and picture frames by using an noiseless extruding technology, with characteristics of high efficiency, stability and uniform coating.
The gesso extruder machineis unarguably strongest, most flexible and most reliable.
| Parameter | |
| max feeding speed | 60m/min |
| height from worktable to ground | 800mm |
| batten width | 25-300mm |
| batten thickness | 10-60mm |
| min batten length | 1500mm |
| total power | 10.07kw |
| net weight | around 1600kg |
| main machine overall size | 1850(L)x1100(W)x1950(H)mm |
| auxiliary machine overall size | 1600(L)x900(W)x2250(H) mm |
| Remark: when batten thickness is 60mm, max width 150mm is allowed, when thickness within 30 mm, max width 300mm is allowed | |
